Optimize horizontal and vertical Antenna Patterns

The signatory states have agreed on the procedure for the combination of horizontal and vertical antenna patterns, within the framework of the HCM agreement.

HCM patterns or envelopes are a generalized picture of the existing irregular radiation pattern of a radio antenna. HCM Pattern Optimizer is a tool for calculating antenna envelopes based on the HCM Agreement. Antenna patterns of the manufacturers are converted into the optimal HCM pattern. The software can calculate multiple horizontal and vertical HCM patterns for an antenna pattern.

By combining HCM patterns, the levels of the same radio cell calculations lead to different field strengths (theoretical), which can lead to a situational optimization.

Features

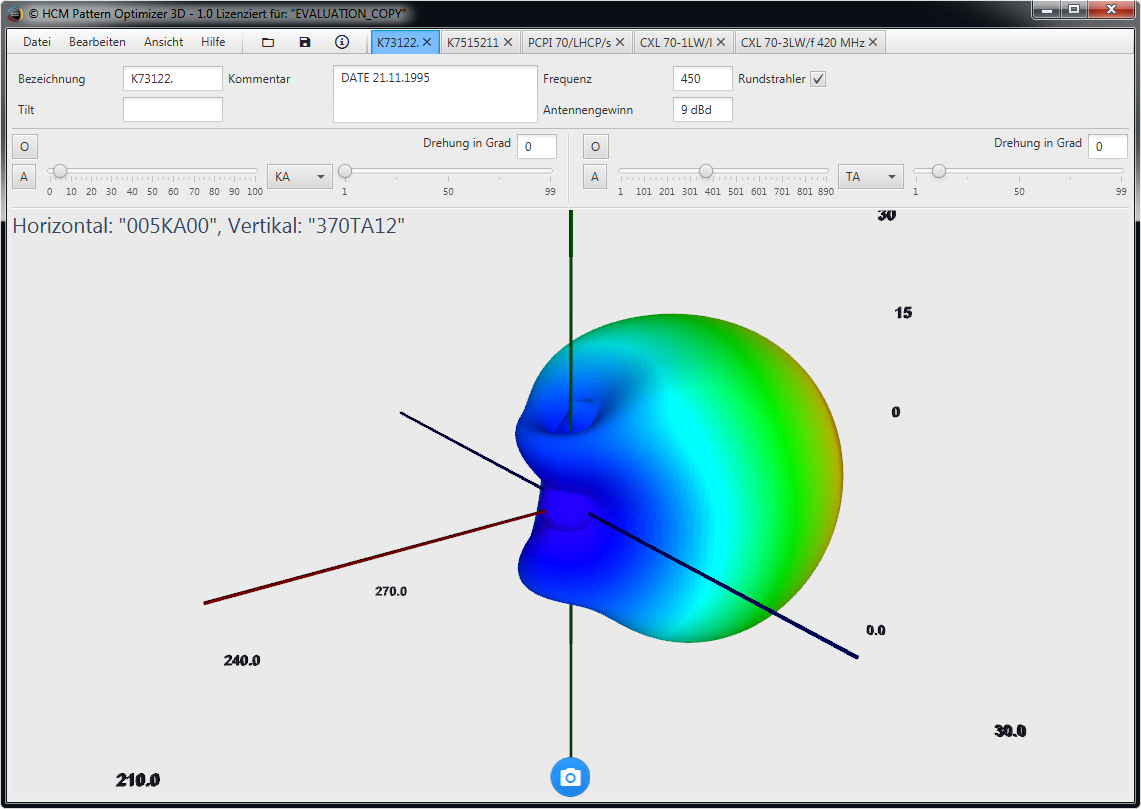

360° antenna radiation pattern improvement
Improvement of current type of antenna radiation pattern
Concurrent modification of several antennas in tabs
Optional meta data can be saved together with antenna

Turning offset angles of antennas
Quick and easy screenshot feature available
Multilingual (currently German and English implemented)

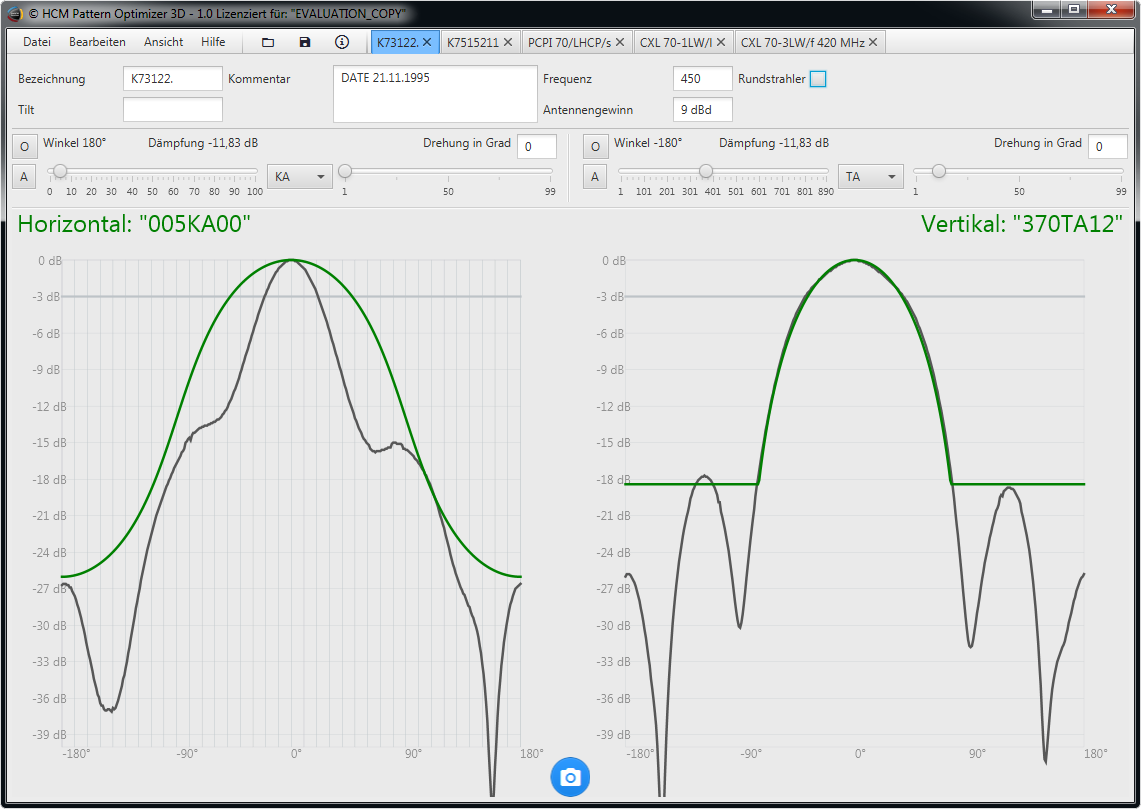

Views

Editions

Feature Comparison

Feature	Free Version	Full Version
Time limited	No	No
360° pattern optimization	✓	✓
Optimization of current pattern types	✓	✓
Parallel editing of multiple antennas in tabs	✓	✓
Edit and save antenna meta information	✓	✓
Turning antenna angle offset	✓	✓
Easy screenshot capturing	✓	✓
Open XML	✓	✓
Save XML	-	✓
New XML	✓	✓
XML new entry	✓	✓
Delete XML	✓	✓
Rename XML	✓	✓

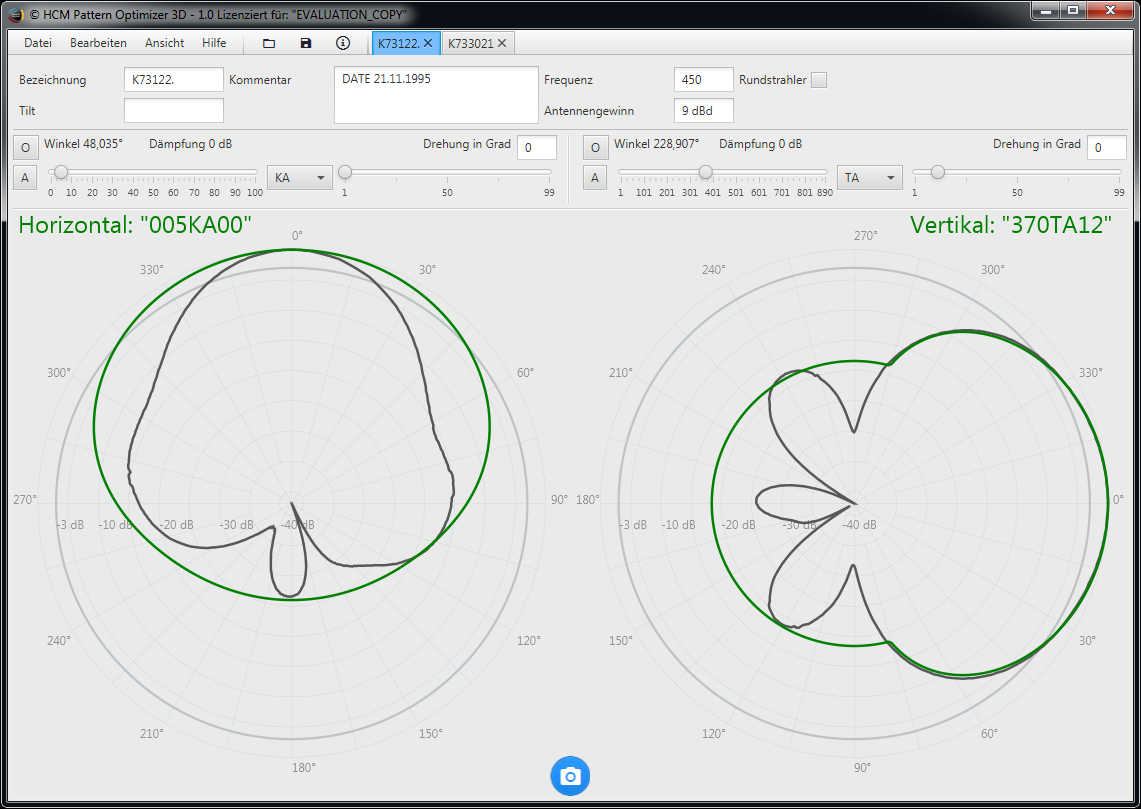

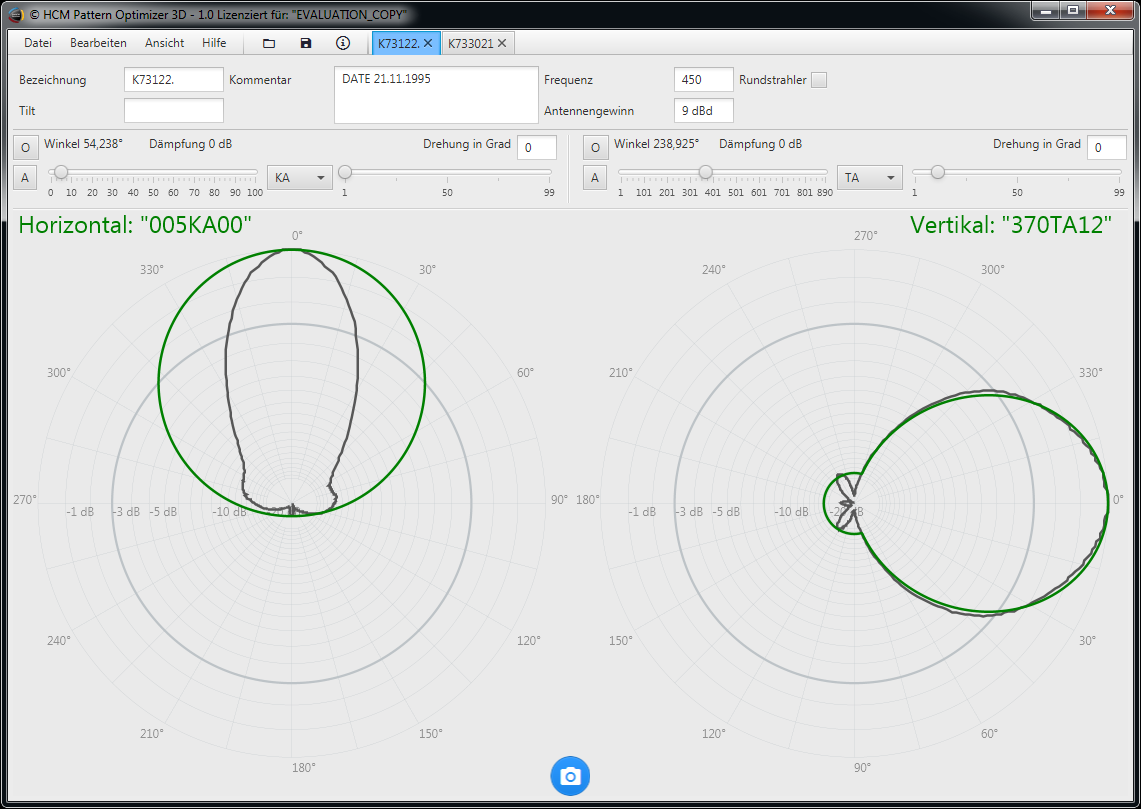

Chart view linear / logarithmic	✓	✓
Pattern calculation appendix 6 HCM V6 / 7	Only EA patterns	✓
Pattern display	Thick lines	✓
Manufacturers import	Only Kathrein	✓
Reporting	Only JPG	✓
Angle optimization	✓	✓
Manual data entry	✓	✓
Parameter input	✓	✓
Color selection	✓	✓
Certification	-	✓
All pattern types	-	✓
Coordinate display	-	✓
Maximizing windows	-	✓
	Request download	Get in touch

System Requirements

Hardware/Software	Minimum Requirements
Processor performance	2.0 GHz
Memory (RAM)	1 GByte
Hard disk space	200 MByte
Operating system	Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Display resolution	1024x768 pixel or more

Download

Quickstart guide

HCM pattern optimizer quickstart guide english

pdf 717 KB

Precise antenna models with PreHCM HCM Pattern

Optimized pattern calculation for maximum frequency efficiency

With PreHCM’s HCM pattern calculation, you can transform complex antenna patterns into standardized, HCM-compliant envelope curves - the foundation for precise field strength calculations and reliable frequency coordination. Our solution enables the automated calculation and optimization of horizontal and vertical patterns, as well as their intelligent combination for situation-specific performance optimization. This allows you to improve the quality of your planning data, reduce uncertainties in the approval process, and lay the groundwork for efficient and scalable network expansion.
